Equipped with industrial-grade LED lights, it instantly illuminates vast mining

areas with a staggering 420,000 lumens—equivalent to hundreds of traditional

floodlights.

Uniform light penetration eliminates shadows and blind zones, significantly

reducing nighttime accident risks while boosting operational precision.

The hydraulically powered mast rises to 10 meters with one-touch operation.

Its specialized hinge design allows horizontal-to-vertical angle adjustments,

adapting to steep slopes, deep pits, and challenging terrain.

Rotatable and lockable light heads enable precise focus on critical work zones,

offering "point-and-shine" flexibility.

Automatic hydraulic leveling stabilizers require, enabling secure setup on

uneven ground (e.g., slopes, gravel) within 3 minutes.

A heavy-duty dual-axle trailer with all-terrain tires and reinforced suspension

navigates mud, rocky paths, and extreme conditions, improving deployment

efficiency by 60%.

A 270L explosion-proof fuel tank, paired with a low-consumption engine and smart

frequency control, delivers 270 hours (≈11 days) of continuous runtime—eliminating

frequent refueling.

Optional solar charging systems further extend runtime and reduce operational costs.

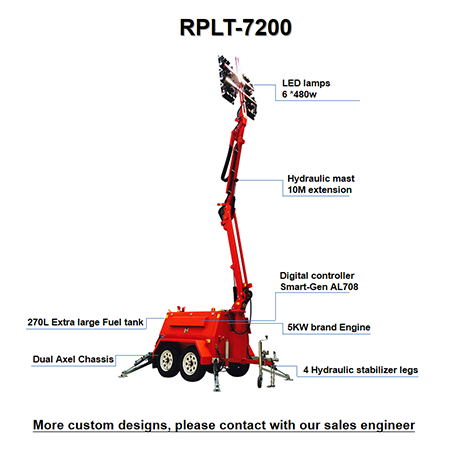

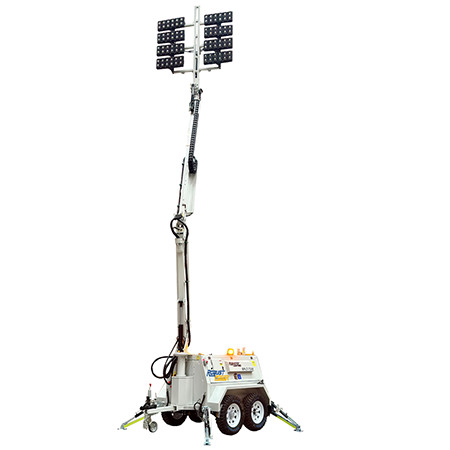

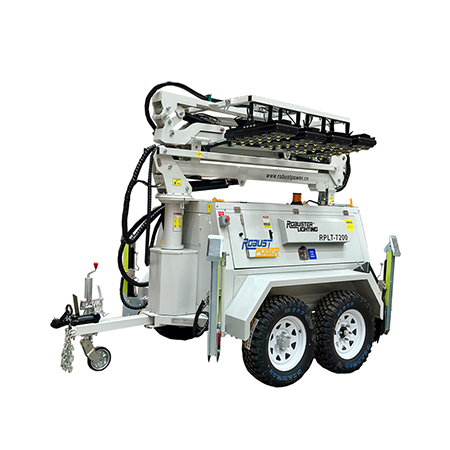

Mobile Light Tower

Lamp Lumens

403,200 / 604,800 / 420,000 lm

Wattage

6*480w/6*720w/10*300w

Lamps

LED Lamp

Fuel tank capacity

270L

Mast

Hydraulic mast

Fuel Consumption

0.8 L/hr

Maximum Height

10 M

Rate Power

5 KW

Rotation

340 degrees

Rate Frequency

50/60 Hz

Engine

Kubota D1105-BG/Kohler KDW1003

/Yanmar 3TNV88-GGHWC Diesel Engine

Rated Voltage

48V DC

Coolant

Water

Number of cylinders

3

Speed

1500/1800 Rpm

Dimensions

3150*1850*2440mm

Alternator

4-pole/ Brushless,excitation

Weight

1980 KG
