Zero-Noise Nighttime Mode: Powered by lithium iron phosphate batteries,

operates silently to avoid disturbing residents or sensitive

environments—ideal for nighttime construction and urban operations.

Smart Energy Management: Automatically switches to diesel generators

when battery levels drop, ensuring uninterrupted lighting. Supports simultaneous

charging and power generation for optimized energy utilization.

Industry-Leading Brightness: High-density LED modules deliver 145,000

lumens of pure light output with no dead zones.

270° Wide-Angle Coverage: Uniform, glare-free illumination enhances safety

and visual comfort across work zones.

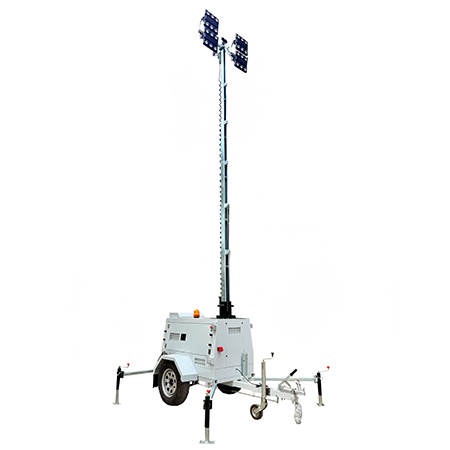

One-Touch Telescoping: Robust hydraulic drive extends the mast to 8.5

meters for elevated lighting in complex terrain.

Wind-Resistant Design: Ensures stability during extreme weather conditions.

360°Horizontal Rotation: Precise light projection for versatile applications.

Lithium Iron Phosphate Battery: 4,000+ charge cycles, fast charging, enhanced

safety, and no memory effect.

Energy-Efficient Diesel Engine: Reduces fuel consumption by 30% and carbon

emissions, complying with strict environmental regulations.

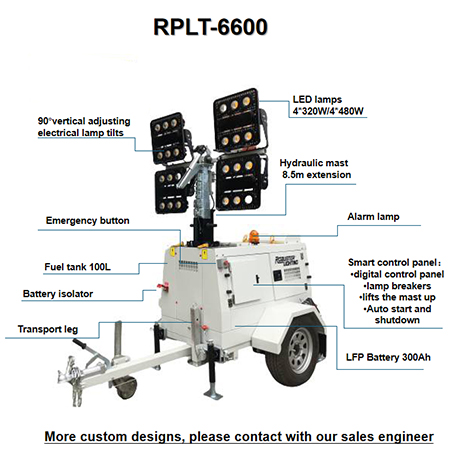

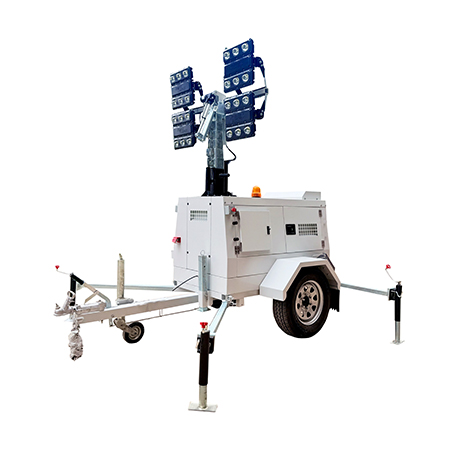

Mobile Light Tower

Lamp Lumens

196000/268800 lm

Wattage

4*350W/4*480W

Lamps

LED Lamp

Fuel tank capacity

100L

Mast

Hydraulic mast

Fuel Consumption

1.05 L/hr

Maximum Height

8 M

Rate Power

5KW(DC)

Rotation

350 degrees

Rated Voltage

48V DC

Engine

Kubota D1105-BG

/Yanmar Diesel Engine

Battery

LFP BATTERY

Coolant

Water

Battery Capacity

200Ah/300Ah

Speed

1500/1800 Rpm

Dimensions

1500*900*2400mm

Alternator

4-pole/ Brushless,excitation

Weight

980 KG
