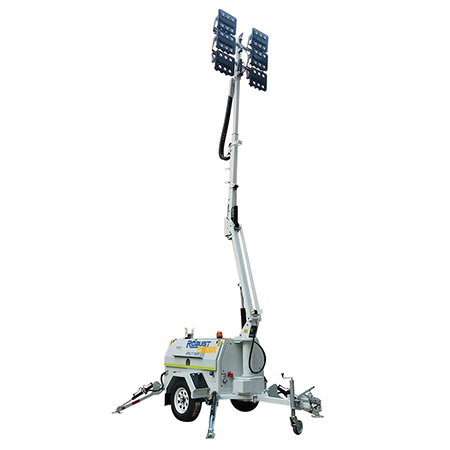

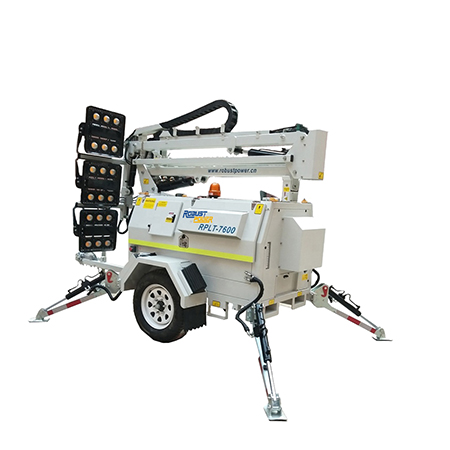

RPLT-7600-Hydraulic Light Tower-ROBUST POWER-ROBUSTER LIGHTING

RPLT-7600

Hydraulic Light Tower

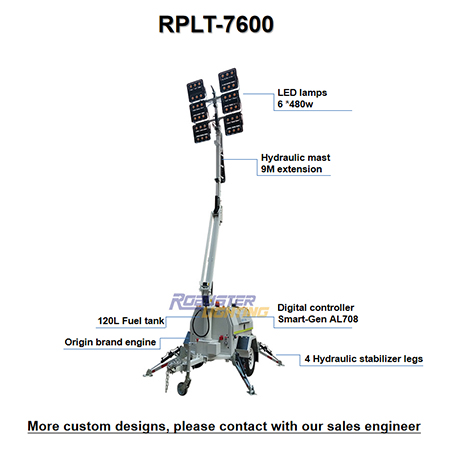

The RPLT-7600 is a heavy-duty hydraulic light tower designed for high-performance illumination in extreme environments. It features 6x480W high-brightness LEDs, a 10m extendable hydraulic mast, and a robust 110% containment frame for enhanced safety. It delivers long-lasting, reliable lighting for mining operations, construction sites, disaster response, and industrial applications. The integrated hydraulic system ensures quick setup and precise positioning, while the reinforced frame withstands harsh conditions and minimizes risks of component failure. With its energy-efficient design and scalable output, the RPLT-7600 is ideal for mission-critical scenarios requiring both power and durability.

Ask For A Quote Download A Catalogue

48V DC

5KW

Rate Power

6*480W

LED Lamps

10M

Hydraulic Mast

Features

—————————————————————————————————————————————————————————————————————————————

Lighting:

Mast & Functionality:

6x480W LEDs (total 2,880W) for ultra-bright, energy-efficient illumination.

10m hydraulic mast (adjustable height) with 360° rotation for flexible coverage.

Power & Safety:

Durability:

48V DC power system for reduced energy consumption;

110% containment frame to prevent debris ejection.

Built-in weatherproofing and corrosion-resistant materials for tough conditions.

Specification

Robust Power	RPLT-7600
Mobile Light Tower
Lamp Lumens	403200 / 604800 lm	Wattage	6480w / 6720w
Lamps	LED Lamp	Fuel tank capacity	120L
Mast	Hydraulic mast	Fuel Consumption	0.8 L/hr
Maximum Height	9 M	Rate Power	5 KW
Rotation	340 degrees	Rate Frequency	50/60 Hz
Engine	Kubota D1105-BG/Kohler KDW1003 /Yanmar 3TNV76-GGHWC Diesel Engine	Rated Voltage	48V DC
Coolant	Water	Number of cylinders	3
Speed	1500/1800 Rpm	Dimensions	315016002400mm
Alternator	4-pole/ Brushless,excitation	Weight	1750 KG
