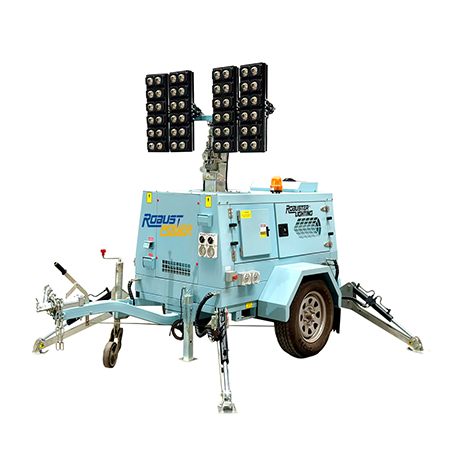

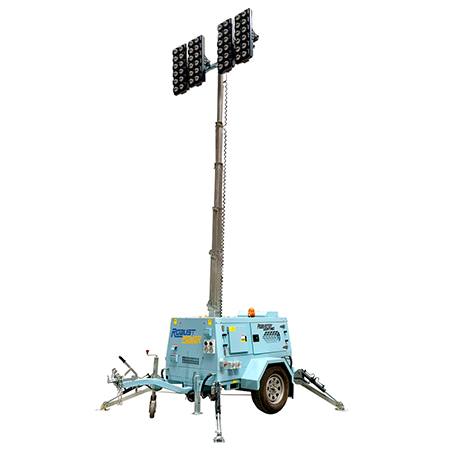

Hydraulic Light Tower

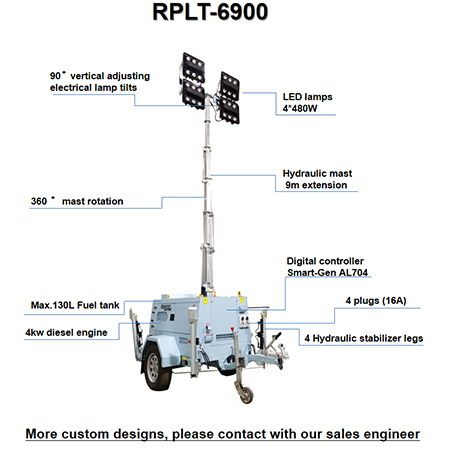

The RPLT-6900 combines a 7kW generator, 4×480W LEDs, an 8.5m hydraulic mast, and 110% containment frame with 48V DC power. Built for reliability, it delivers extended runtime and safe, efficient illumination for construction, events, or emergencies.
ED Lamps
Safety
Hydraulic Mast
Containment Frame
Specification
Robust Power | RPLT-6900 | ||
Mobile Light Tower | |||
Lamp Lumens | 268800 lm | Wattage | 4*480W |
Lamps | LED Lamp | Fuel tank capacity | 100L |
Mast | Hydraulic mast | Fuel Consumption | 1.05-2 L/hr |
Maximum Height | 8 M | Rate Power | 5KW(DC) |
Rotation | 350 degrees | Rated Voltage | 48V DC |
Engine | Kubota D1105-BG /Yanmar 3TNV76 Diesel Engine | Rated Voltage | 110V/120V/220V/230V/240V |
Coolant | Water | Number of cylinders | 3 |
Speed | 1500/1800 Rpm | Dimensions | 3320*1720*2500mm |
Alternator | 4-pole/ Brushless,excitation | Weight | 980 KG |
