7kW Diesel Generator Set: Provides stable power supply to operate the

lighting system and additional accessories, ensuring continuous performance

in complex environments.

Extended Runtime: Up to 40–74 hours of operation on a full tank (varies by load),

minimizing refueling frequency and ensuring uninterrupted work.

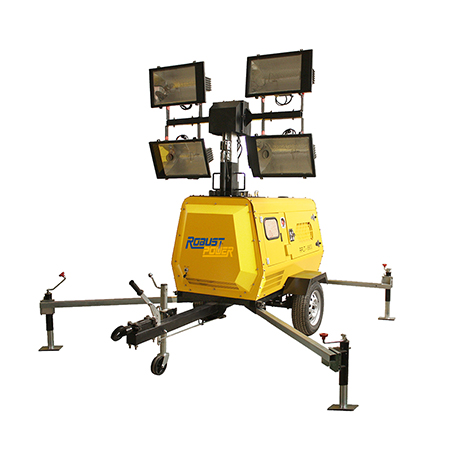

4×1000W Metal Halide Lamps: Deliver 440,000 lumens of intense brightness with

precise long-beam projection, ideal for large construction sites, warehouses, or outdoor

worksites requiring high luminance.

4×500W LED Lamps: Offer 290,000 lumens with lower energy consumption and

reduced heat output, suitable for extended operations or heat-sensitive environments.

Adjustable Light Heads: Electrically controlled 90° vertical adjustment allows easy

repositioning of the light beam to cover broader areas without climbing the tower.

Hydraulic Lifting Mast: Rises up to 9 meters (29.5 feet) to meet varying height

requirements.

Optional Hydraulic Support Feet: Enhance stability on uneven terrain, ensuring

reliable performance in challenging conditions.

Compact Design: Folds compactly for easy transportation and storage, reducing

space requirements.

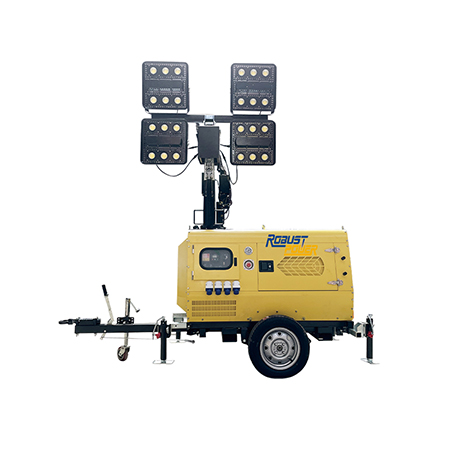

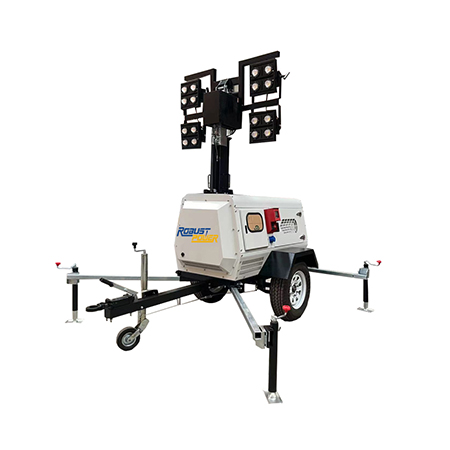

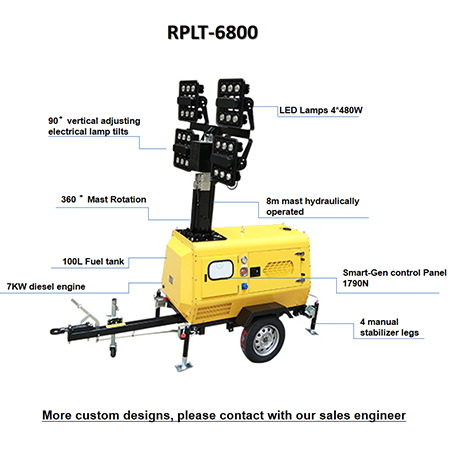

Mobile Light Tower

Lamp Lumens

268800 lm

Wattage

4*480W

Lamps

LED Lamp

Fuel tank capacity

100L

Mast

Hydraulic mast

Fuel Consumption

1.05-2 L/hr

Maximum Height

8 M

Rate Power

7/8 KW

Rotation

350 degrees

Rate Frequency

50/60 Hz

Engine

Kubota D1105-BG/Kohler KDW1003

/Yanmar 3TNV76-GGHWC Diesel Engine

Rated Voltage

110V/120V/220V/230V/240V

Coolant

Water

Number of cylinders

3

Speed

1500/1800 Rpm

Dimensions

3050*1350*2980mm

Alternator

4-pole/ Brushless,excitation

Weight

890 KG
